GHSZ20-120 and GHSZ40-200
Stepping motor driven stages, ideal for positioning of measuring instruments or inspection tools for which high stiffness and high precision are required.
Stepping motor stages compatible with versatile travel range and can be used in any orientation. Also, the Servo motor stages can accept CUSTOMIZED design

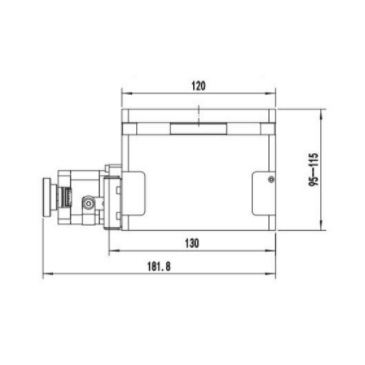

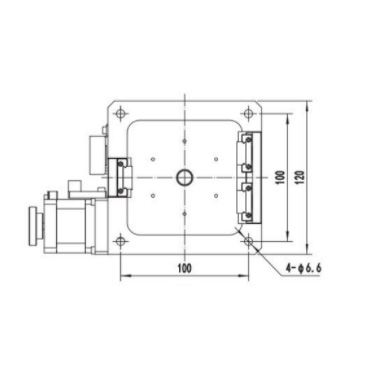

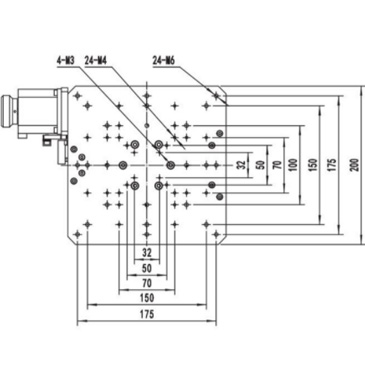

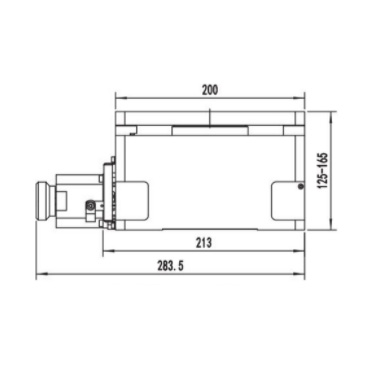

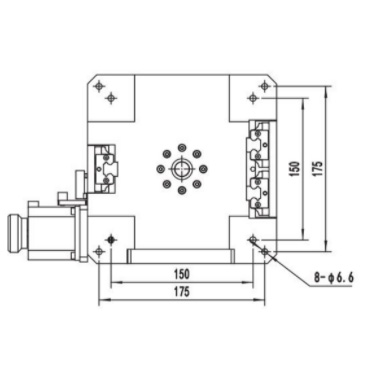

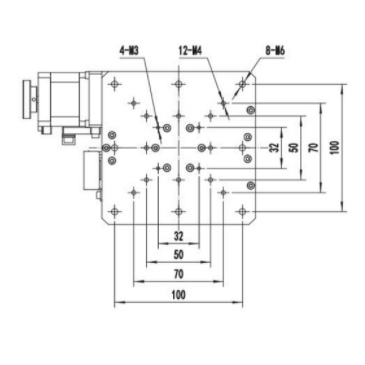

Motorized Stages: GHSZ20-120 and GHSZ40-200
| Motorized Stage Model |
GHSZ20-120 |
GHSZ40-200 |
| Travel Range |
20MM |
40MM |
| Table Size |
120*120mm |
200*200mm |
| Feed Screw |
φ12mm, 5mm lead |
φ16mm, 10mm lead |
| Positioning Slide |
Bearing method |
Bearing method |
| Worm gear |
1:80 |
1:120 |
| Finish |
Aluminum, black anodized |
Aluminum, black anodized |
| Stage weight |
4.2Kg |
12.5Kg |
| Repeatability |
≤ ±2μm |
≤ ±2μm |
| MAX Speed |
0.625mm/s |
0.833mm/s |
| Load Capacity |
20Kg |
30Kg |
| Flatness |
≤ 100μm |
≤ 120μm |
|
Sensor |
NPN open, Origin and Limit Sensor |
NPN open, Origin and Limit Sensor |
| Motor Type |
2-phase stepping motor 42mm |
2-phase stepping motor 57mm |
| Motor Step Angle |
1.8° |
1.8° |
