GJSZ60 and GJSZ120

Stepping motor driven stages, ideal for positioning of measuring instruments or inspection tools for which high stiffness and high precision are required. Stepping motor stages compatible with versatile travel range and can be used in any orientation. Also, the Servo motor stages can accept CUSTOMIZED design

Motorized Stages: GJSZ60 and GJSZ120
Motorized Stage Model GJSZ60 GJSZ120
Travel Range 60MM 120MM
Table Size 80*120mm 140*220mm
Feed Screw Trapezoidal screw, 1.25mm lead Double trapezoidal screw, 1mm lead
Finish Aluminum, black anodized Aluminum, black anodized
Stage weight 1.5Kg 6Kg
Load Capacity 5Kg 10Kg
Motor Type 2-phase stepping motor 42mm 2-phase stepping motor 57mm
Motor Step Angle 1.8° 1.8°

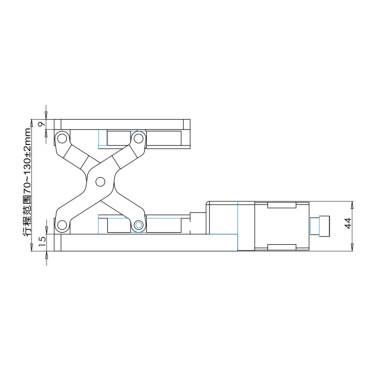

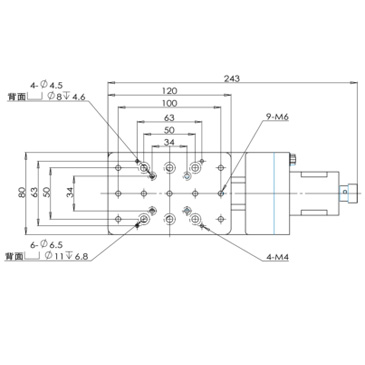

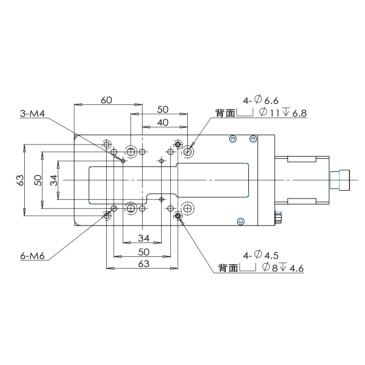

GJSZ60 Sizes
Metrology
OEM and industrial
Model dependent travel range, load capacity, and table size

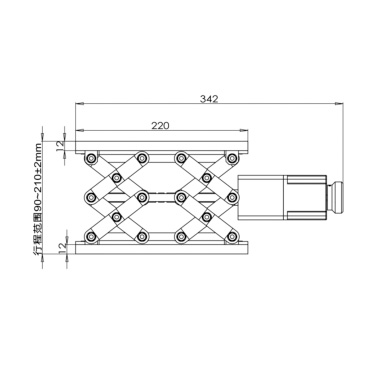

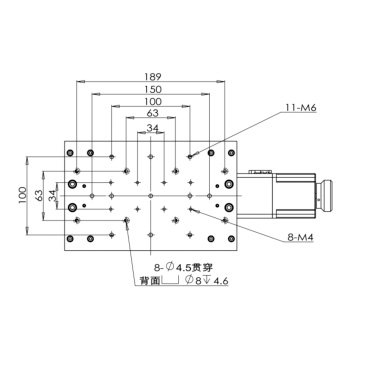

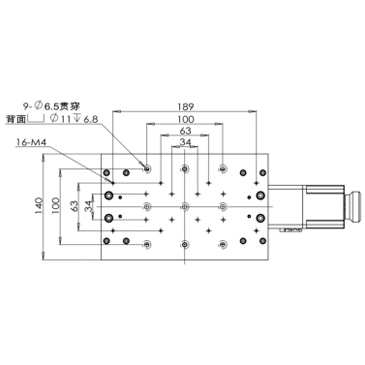

GJSZ120 Sizes
