This High Precision Manual Multi Axis Stage is made of black anodized aluminum that offers light yet rigid construction and minimizes stray light in situation where light sensitivity is important.
Please refer to the detailed list of specifications and inquire if anything is not clear. These manual translation stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are working in an R&D or industrial setting, or looking for an OEM solution for your motion control application, and we can supply a suitable solution for your application. Our products are made in China and undergo a rigorous quality control to meet the needs of you.

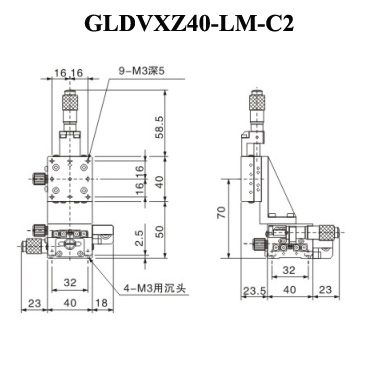

GLDVXZ40-LM-C2 Size and Overview
- Model number: GLDVXZ40-LM-C2
- Table size: 40×40MM
- X Axis Travel range: ±6.5MM
- Z Axis Travel range: ±6.5MM
- Resolution: 0.01MM
- Peak force: 19.2N (2Kgf)
- X Axis number: GLY40-LM
- Z Axis number: GLV40-C2
- Moving Axis: X Axis and Z Axis
- Material: Aluminum, black anodized
- Overall mass: 0.49Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

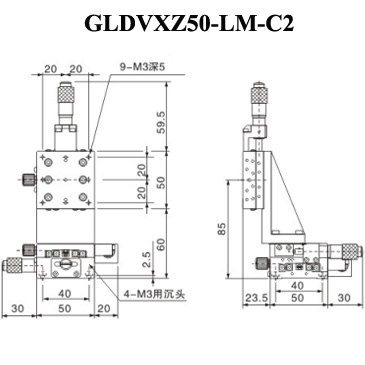

GLDVXZ50-LM-C2 Size and Overview
- Model number: GLDVXZ50-LM-C2
- Table size: 50×50MM
- X Axis Travel range: ±6.5MM
- Z Axis Travel range: ±6.5MM
- Resolution: 0.01MM
- Peak force: 29.4N (3Kgf)
- X Axis number: GLY50-LM
- Z Axis number: GLV50-C2
- Moving Axis: X Axis and Z Axis
- Material: Aluminum, black anodized
- Overall mass: 0.62Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

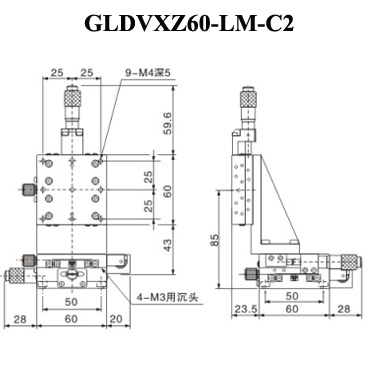

GLDVXZ60-LM-C2 Size and Overview
- Model number: GLDVXZ60-LM-C2
- Table size: 60×60MM
- X Axis Travel range: ±6.5MM
- Z Axis Travel range: ±6.5MM
- Resolution: 0.01MM
- Peak force: 39.2N (4Kgf)
- X Axis number: GLY60-LM
- Z Axis number: GLV60-C2
- Moving Axis: X Axis and Z Axis
- Material: Aluminum, black anodized
- Overall mass: 0.93Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

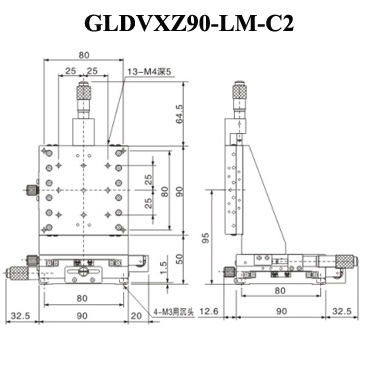

GLDVXZ90-LM-C2 Size and Overview
- Model number: GLDVXZ90-LM-C2
- Table size: 90×90MM
- X Axis Travel range: ±12.5MM
- Z Axis Travel range: ±12.5MM
- Resolution: 0.01MM
- Peak force: 58.8N (6Kgf)
- X Axis number: GLY90-LM
- Z Axis number: GLV90-C2
- Moving Axis: X Axis and Z Axis
- Material: Aluminum, black anodized
- Overall mass: 1.83Kg
