GLP50, GLP100, GLP150, GLP200, GLP300, GLP400, GLP500, GLP600, GLP800 and GLP1000
Stepping motor driven stages, ideal for positioning of measuring instruments or inspection tools for which high stiffness and high precision are required.
Stepping motor stages compatible with versatile travel range and can be used in any orientation. Also, the Servo motor stages can accept CUSTOMIZED design
Motorized Stages: GLP50, GLP100, GLP150, GLP200, GLP300, GLP400, GLP500, GLP600, GLP800 and GLP1000
| Motorized Stage Model |
GLP50, GLP100, GLP150, GLP200 |
GLP300, GLP400 |
GLP500, GLP600, GLP800, GLP1000 |
| Travel Range |
50MM, 100MM, 150MM, 200MM |
300MM, 400MM |
500MM, 600MM, 800MM, 1000MM |

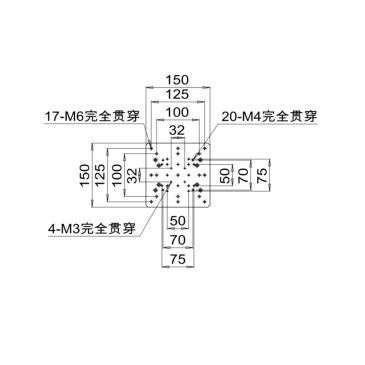

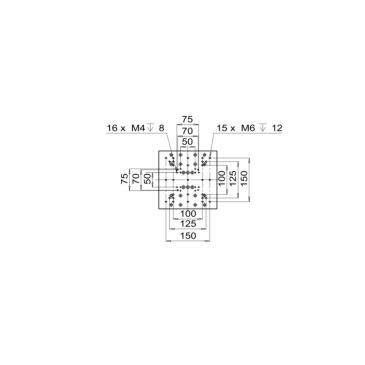

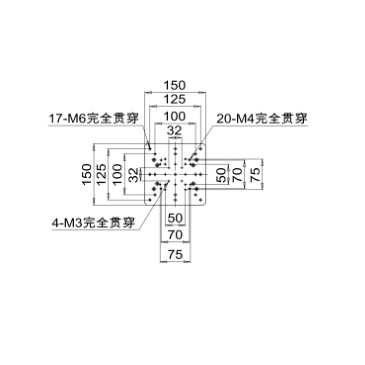

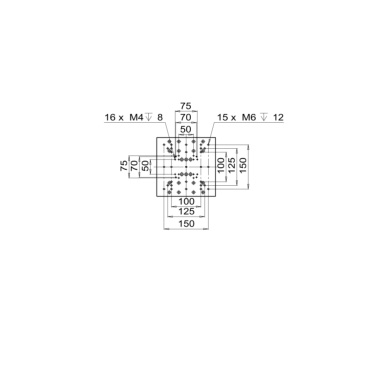

| Table Size |
120*120mm |
150*150mm |
200*200mm |
| Feed Screw |
Ball screw, 4mm lead |
Ball screw, 5mm lead |
Ball screw, 5mm lead |
| Positioning Slide |
Linear guides |
Linear guides |
Linear guides |
| Finish |
Aluminum, black anodized |
Aluminum, black anodized |
Aluminum, black anodized |
| Stage weight |
5.8Kg, 6.2Kg, 6.7Kg, 7Kg |
8.9Kg, 9.9Kg |
12Kg, 13Kg, 15Kg, 17Kg |
| Resolution (Half) |
10μm |
10μm |
15μm |
| Repeatability |
≤ ±3μm |
≤ ±3μm |
≤ ±3μm |
| MAX Speed |
40mm/s |
50mm/s |
50mm/s |
| Load Capacity |
30Kg |
50Kg |
50Kg |
|
Motion Straightness |
≤ 20μm |
≤ 25μm/100mm |
≤ 25μm/100mm |
| Motion Flatness |
≤ 25μm |
≤ 25μm/100mm |
≤ 25μm/100mm |
| Flatness |
≤ 100μm |
≤ 100μm |
≤ 100μm |
|
Sensor |
NPN open, Origin and Limit Sensor |
NPN open, Origin and Limit Sensor |
NPN open, Origin and Limit Sensor |
| Motor Type |
2-phase stepping motor 57mm |
2-phase stepping motor 57mm |
2-phase stepping motor 57mm |
| Motor Step Angle |
1.8° |
1.8° |
1.8° |
