Manual 🦅 Stages
The Series Aluminum Alloy Dovetail Bearings Linear Stages are characterized by their expansive travel range, designed to accommodate a variety of application needs.
Crafted from durable aluminum alloy, these linear stages are engineered with convenience in mind; the dovetail bearings facilitate easy adjustments and secure fixing. This feature, combined with the series’ robust construction, renders it a highly cost-effective solution, making it an ideal choice for standard optical experiments and other applications requiring precise positioning and alignment.

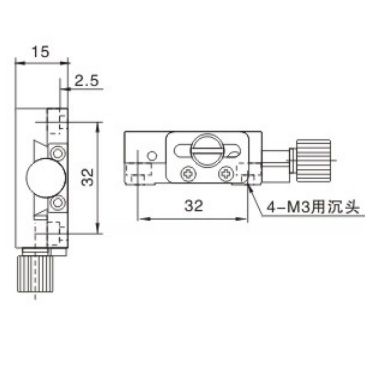

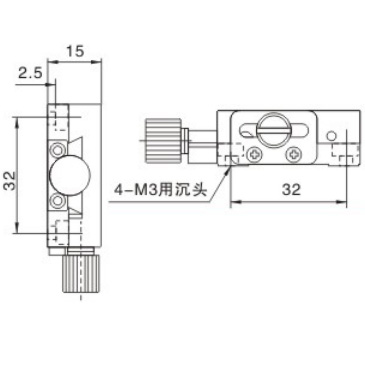

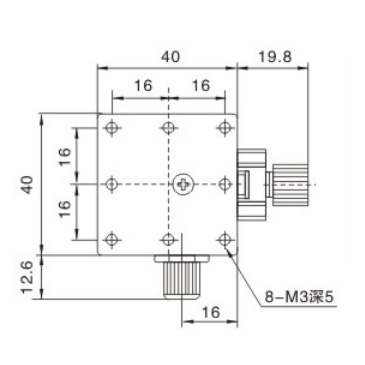

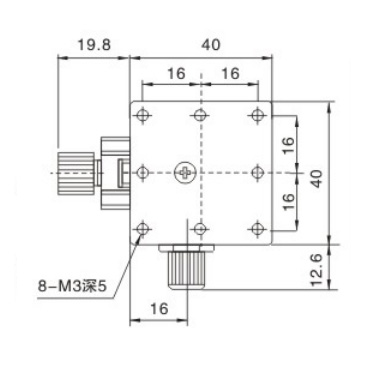

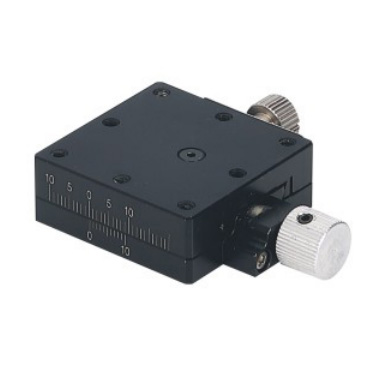

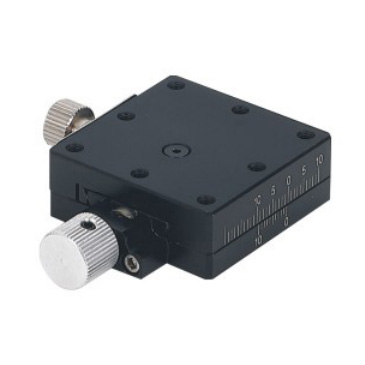

GLWFX40 Pictures and Overview
- Model number: GLWFX40-L, GLWFX40-R
- Table size: 40×40MM
- Travel range: ±7MM
- Peak force: 29.4N (3Kgf)
- Material: Aluminum, black anodized
- Resolution: 0.01MM
- Moved flatness: ≤0.02MM / 14MM
- Flatness: 0.03MM
- Overall height: 15MM
- Overall mass: 0.07Kg
