GLWXZ4060
The Series Aluminum Alloy Dovetail Bearings Linear Stages are characterized by their expansive travel range, designed to accommodate a variety of application needs.
Crafted from durable aluminum alloy, these linear stages are engineered with convenience in mind; the dovetail bearings facilitate easy adjustments and secure fixing. This feature, combined with the series’ robust construction, renders it a highly cost-effective solution, making it an ideal choice for standard optical experiments and other applications requiring precise positioning and alignment.

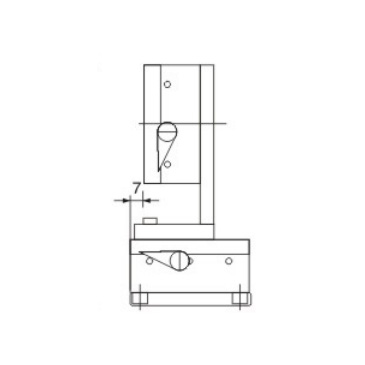

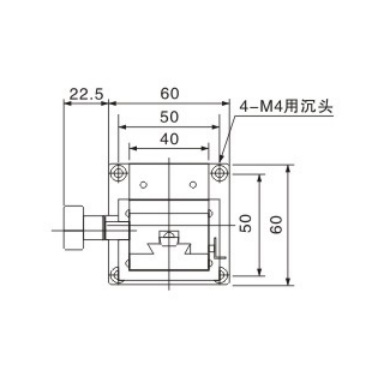

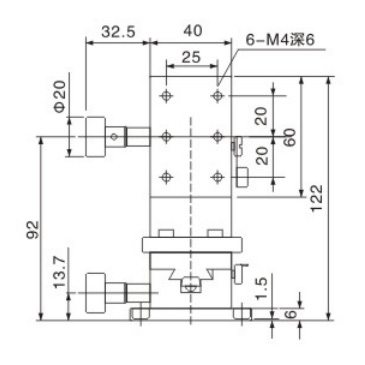

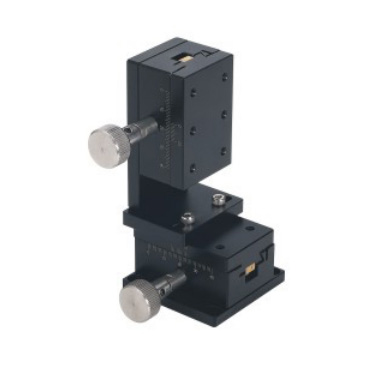

GLWXZ4060 Pictures and Overview
- Model number: GLWXZ4060
- Table size: 40×60MM
- Travel range: ±15MM
- Peak force: 49N (5Kgf)
- Material: Aluminum, black anodized
- Resolution: 0.1MM
- Moved flatness: ≤0.05MM / 30MM
- Overall mass: 0.62Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing
