GLXC15-40, GLXC20-60, GLXC30-80, GLXC50-80100, GLXC75-80125 and GLXC100-80175
Stepping motor driven stages, ideal for positioning of measuring instruments or inspection tools for which high stiffness and high precision are required.
Stepping motor stages compatible with versatile travel range and can be used in any orientation. Also, the Servo motor stages can accept CUSTOMIZED design.
Motorized Stages: GLXC15-40, GLXC20-60, GLXC30-80, GLXC50-80100, GLXC75-80125 and GLXC100-80175

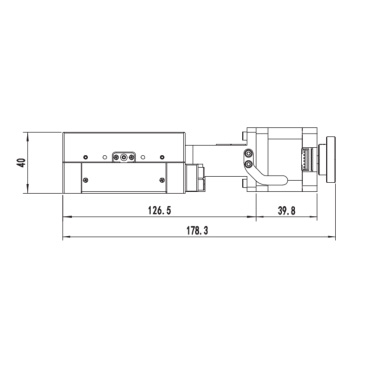

| Motorized Stage Model |

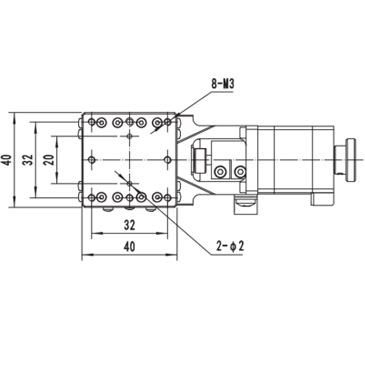

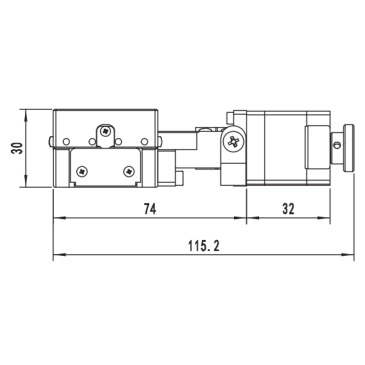

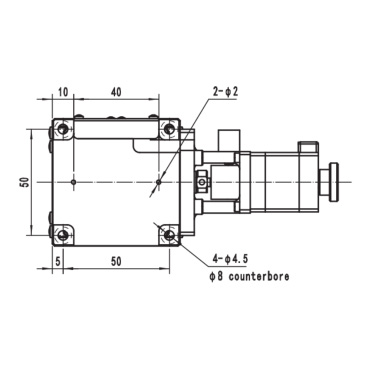

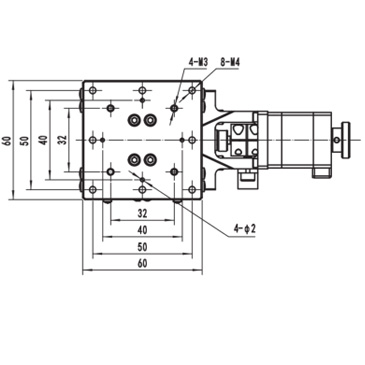

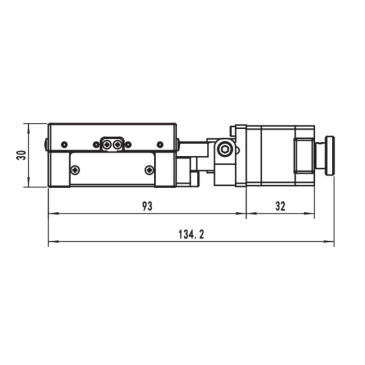

GLXC15-40, GLXC20-60 |

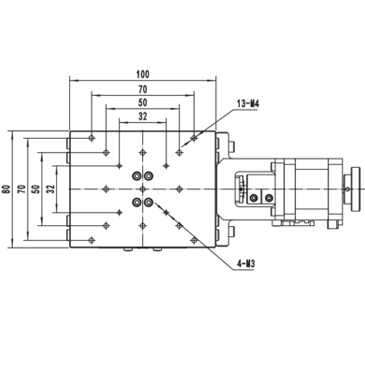

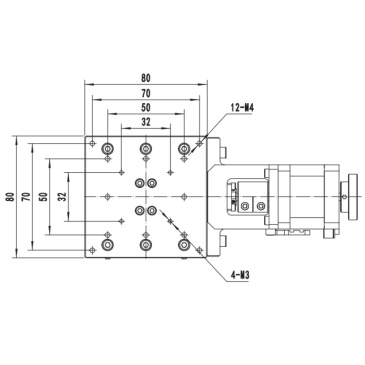

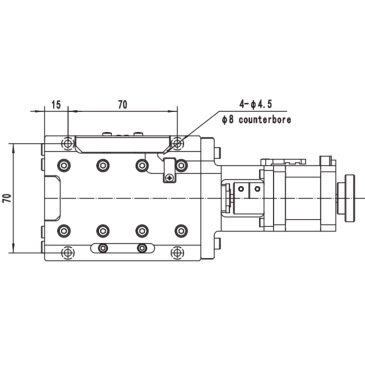

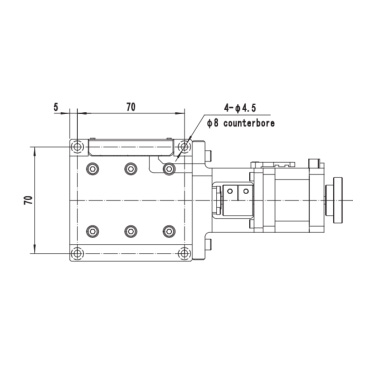

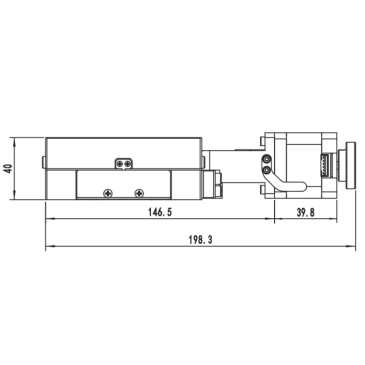

GLXC30-80, GLXC50-80100 |

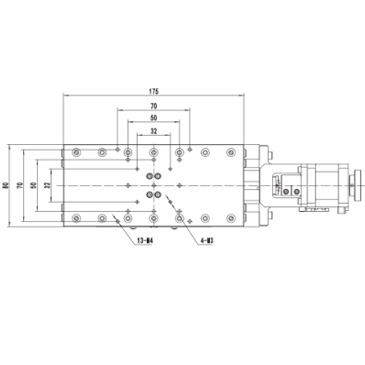

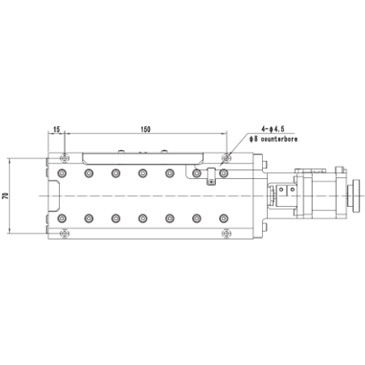

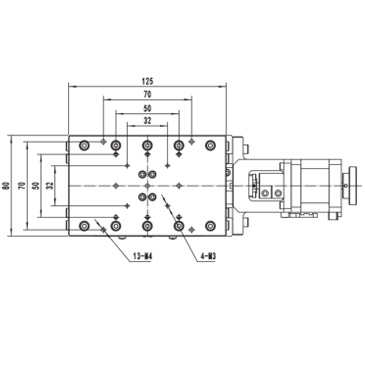

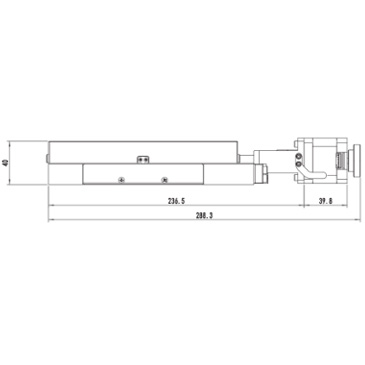

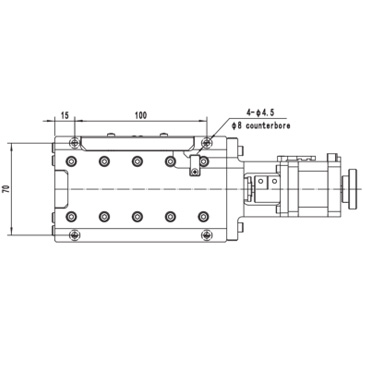

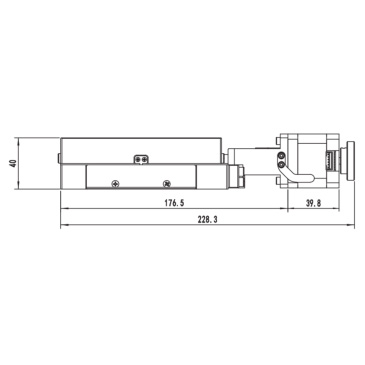

GLXC75-80125, GLXC100-80175 |
| Travel Range |
15MM, 20MM |
30MM, 50MM |
75MM, 100MM |
| Table Size |
40*40mm, 60*60mm |
80*80mm, 80*100mm |
80*125mm, 80*175mm |
| Feed Screw |
Ball screw diameter φ6mm, 1mm lead |
Ball screw diameter φ8mm, 2mm lead |
Ball screw diameter φ8mm, 2mm lead |
| Positioning Slide |
Cross roller guides |
Cross roller guides |
Cross roller guides |
| Finish |
Aluminum, black anodized |
Aluminum, black anodized |
Aluminum, black anodized |
| Stage weight |
0.4Kg, 0.6Kg |
1.2Kg, 1.4Kg |
1.6Kg, 1.8Kg |
| Resolution (Full) |
5μm |
10μm |
10μm |
| Resolution (Half) |
2.5μm |
5μm |
5μm |
| Repeatability |
≤ ±1.5μm |
≤ ±1.5μm |
≤ ±2μm |
| MAX Speed |
10mm/s |
20mm/s |
20mm/s |
| Load Capacity |
5Kg, 8Kg |
16Kg, 20Kg |
25Kg, 30Kg |
|
Motion Straightness |
≤ 10μm |
≤ 10μm |
≤ 10μm |
| Motion Flatness |
≤ 15μm |
≤ 15μm |
≤ 15μm |
| Flatness |
≤ 80μm |
≤ 80μm |
≤ 100μm |
| Moment Stiffness / Yaw |
0.35″/N･cm |
0.35″/N･cm |
/ |
| Moment Stiffness / Roll |
0.3 ″/N･cm |
0.3 ″/N･cm |
/ |
|
Sensor |
NPN open, Origin and Limit Sensor |
NPN open, Origin and Limit Sensor |
NPN open, Origin and Limit Sensor |
| Motor Type |
2-phase stepping motor 28mm |
2-phase stepping motor 42mm |
2-phase stepping motor 42mm |
| Motor Step Angle |
1.8° |
1.8° |
1.8° |
