GTSZ10-120 and GTSZ30-200220
Stepping motor driven stages, ideal for positioning of measuring instruments or inspection tools for which high stiffness and high precision are required.
Stepping motor stages compatible with versatile travel range and can be used in any orientation. Also, the Servo motor stages can accept CUSTOMIZED design

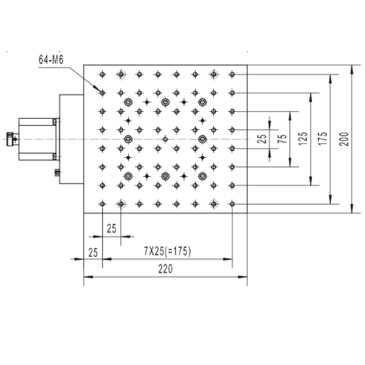

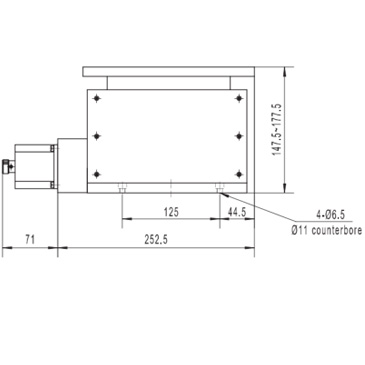

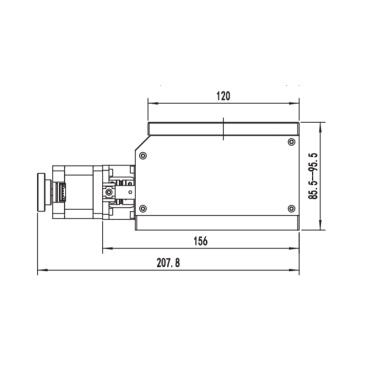

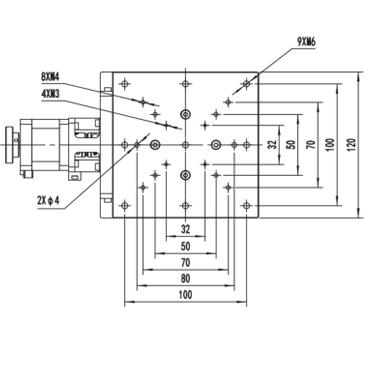

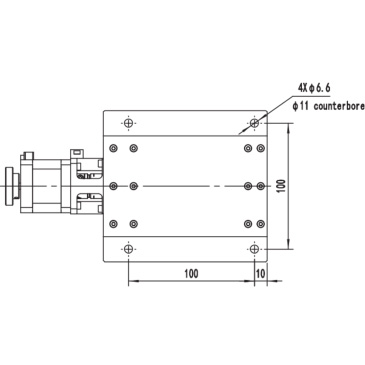

Motorized Stages: GTSZ10-120 and GTSZ30-200220
| Motorized Stage Model |
GTSZ10-120 |
GTSZ30-200220 |
| Travel Range |
10MM |
30MM |
| Table Size |
120*120mm |
200*220mm |
| Feed Screw |
1mm lead |
1mm lead |
| Positioning Slide |
Linear guides |
Linear guides |
| Finish |
Aluminum, black anodized |
Aluminum, black anodized |
| Repeatability |
≤ ±2.5μm |
≤ ±2.5μm |
| MAX Speed |
6mm/s |
6.5mm/s |
| Load Capacity |
10Kg |
20Kg |
| Flatness |
≤ 100μm |
≤ 150μm |
|
Sensor |
NPN open, Origin and Limit Sensor |
NPN open, Origin and Limit Sensor |
| Motor Type |
2-phase stepping motor 42mm |
2-phase stepping motor 57mm |
| Motor Step Angle |
1.8° |
1.8° |
