This High Precision Manual Goniometer Stage is made of black anodized aluminum that offers light yet rigid construction and minimizes stray light in situation where light sensitivity is important.
We offer the models of these stages with ±4 to ±15 degrees of travel range. Please refer to the detailed list of specifications and inquire if anything is not clear. These manual translation stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are working in an R&D or industrial setting, or looking for an OEM solution for your motion control application, and we can supply a suitable solution for your application. Our products are made in China and undergo a rigorous quality control to meet the needs of you.
GUKG40-40L Pictures and Overview
- Model number: GUKG40-40L
- Table size: 40×40MM
- Travel range: ±7°
- Peak force: 3Kgf
- Material: Aluminum, black anodized
- Center height: 40MM
- Overall height: 20MM
- Overall mass: 0.13Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

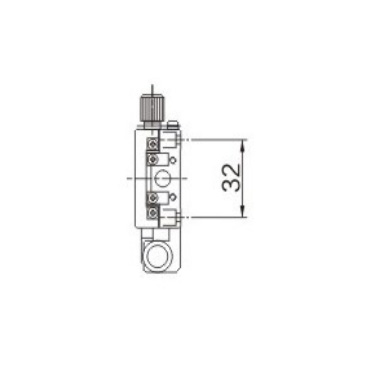

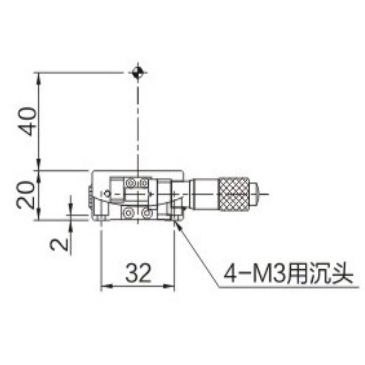

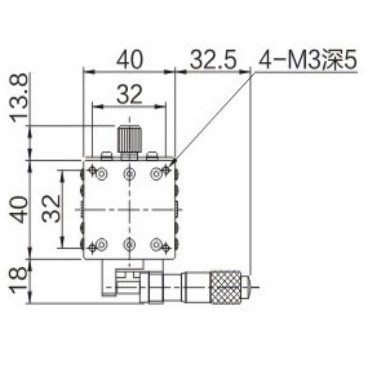

GUKG40-40L Sizes
GUKG40-60L Pictures and Overview
- Model number: GUKG40-60L
- Table size: 40×40MM
- Travel range: ±6°
- Peak force: 3Kgf
- Material: Aluminum, black anodized
- Center height: 60MM
- Overall height: 20MM
- Overall mass: 0.13Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

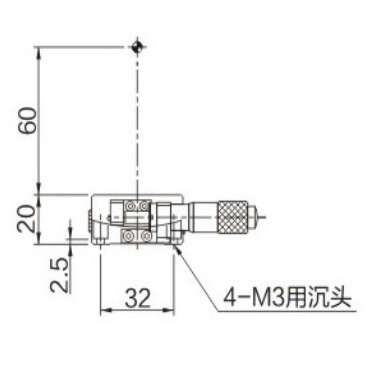

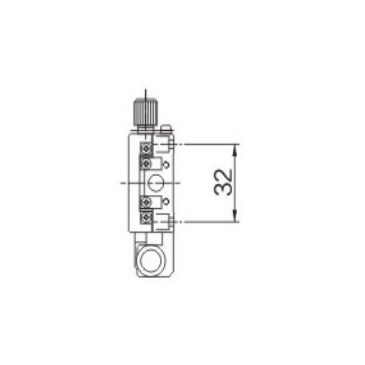

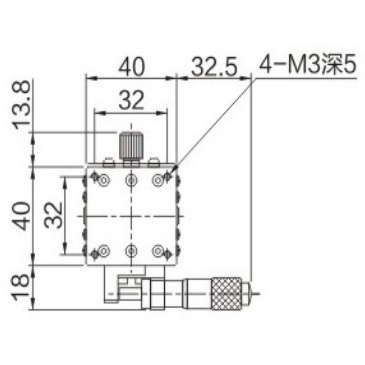

GUKG40-60L Sizes
GUKG60-50L Pictures and Overview
- Model number: GUKG60-50L
- Table size: 60×60MM
- Travel range: ±6°
- Peak force: 5Kgf
- Material: Aluminum, black anodized
- Center height: 50MM
- Overall height: 25MM
- Overall mass: 0.29Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

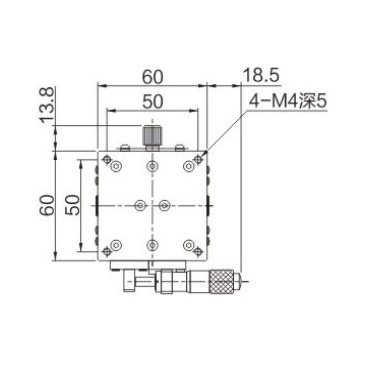

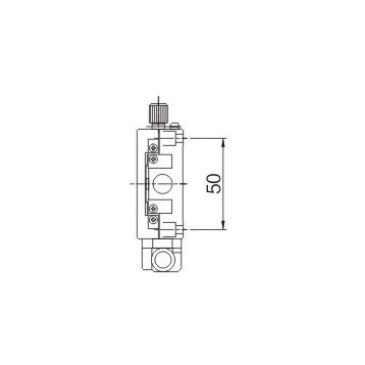

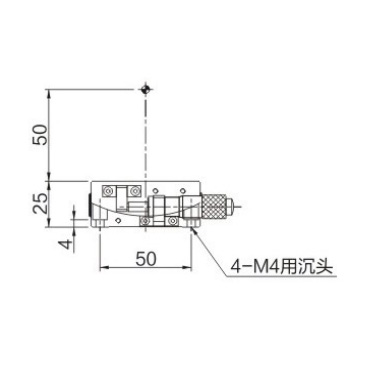

GUKG60-50L Sizes
GUKG60-75L Pictures and Overview
- Model number: GUKG60-75L
- Table size: 60×60MM
- Travel range: ±4°
- Peak force: 5Kgf
- Material: Aluminum, black anodized
- Center height: 75MM
- Overall height: 25MM
- Overall mass: 0.29Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

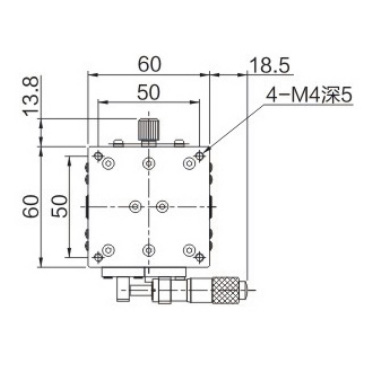

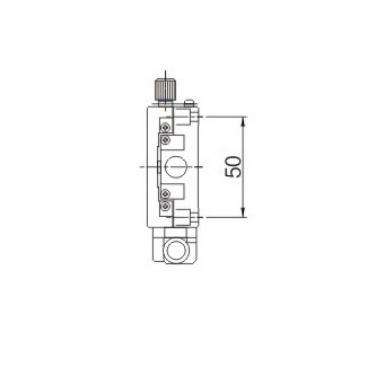

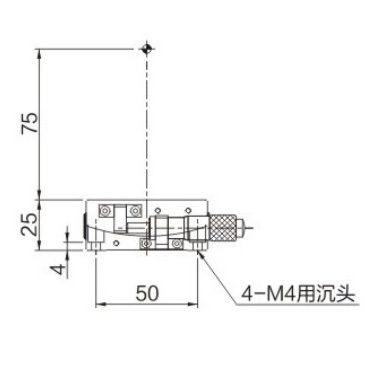

GUKG60-75L Sizes

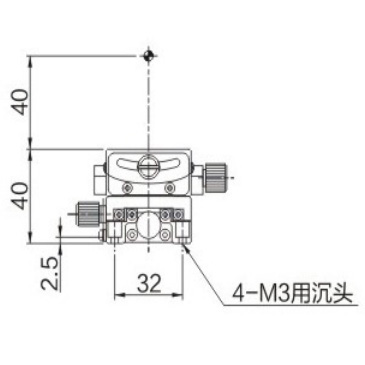

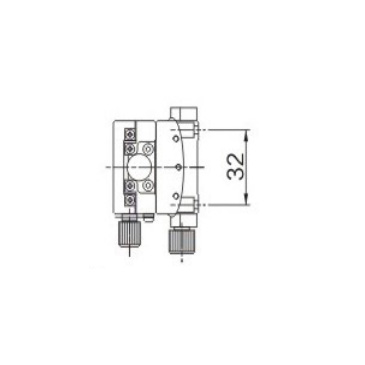

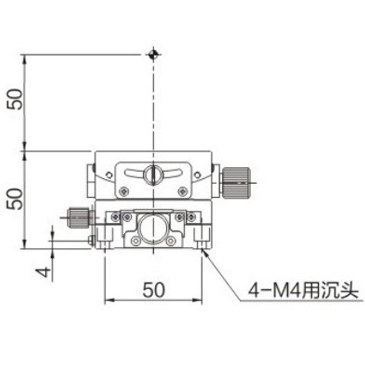

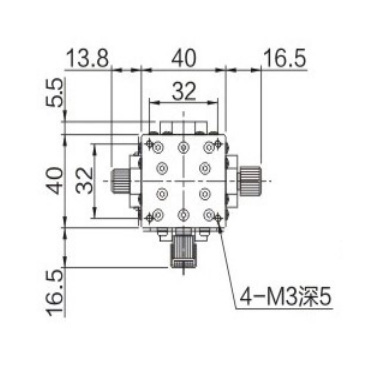

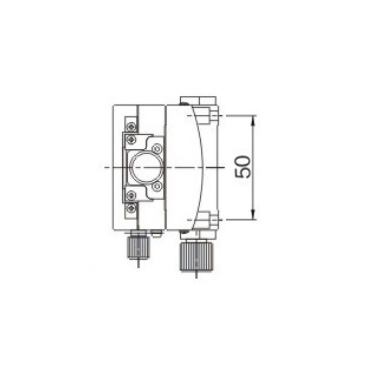

GUKG40-4060LL and GUKG60-5075LL Pictures and Overview
- Model number: GUKG40-4060LL
- Table size: 40×40MM
- Travel range: Top ±7° and Bottom ±6°
- Peak force: 3Kgf
- Material: Aluminum, black anodized
- Center height: 40MM
- Overall height: 40MM
- Overall mass: 0.26Kg
- Model number: GUKG60-5075LL
- Table size: 60×60MM
- Travel range: Top ±6° and Bottom ±4°
- Peak force: 5Kgf
- Material: Aluminum, black anodized
- Center height: 50MM
- Overall height: 50MM
- Overall mass: 0.58Kg
