GUXC15-40 and GUXC20-60

Stepping motor driven stages, ideal for positioning of measuring instruments or inspection tools for which high stiffness and high precision are required. Stepping motor stages compatible with versatile travel range and can be used in any orientation. Also, the Servo motor stages can accept CUSTOMIZED design

Motorized Stages: GUXC15-40 and GUXC20-60
Motorized Stage Model GUXC15-40 GUXC20-60
Travel Range 15MM 20MM
Table Size 40*40mm 60*60mm
Feed Screw Ball screw diameter φ6mm, 1mm lead Ball screw diameter φ8mm, 1mm lead
Positioning Slide Cross roller guides Cross roller guides
Finish Aluminum, black anodized Aluminum, black anodized
Stage weight 0.31Kg 0.44Kg
Resolution (Full) 2μm 2μm
Resolution (Half) 1μm 1μm
Repeatability ≤ ±1μm ≤ ±1μm
MAX Speed 10mm/s 10mm/s
Load Capacity 5Kg 5Kg
Motion Straightness ≤ 3μm ≤ 3μm
Motion Flatness ≤ 10μm ≤ 10μm
Flatness ≤ 30μm ≤ 30μm
Moment Stiffness / Yaw 0.2″/N･cm 0.2″/N･cm
Moment Stiffness / Roll 0.2 ″/N･cm 0.15 ″/N･cm
Sensor NPN open, Origin and Limit Sensor NPN open, Origin and Limit Sensor
Motor Type 5-phase stepping motor 5-phase stepping motor
Motor Step Angle 0.72° 0.72°

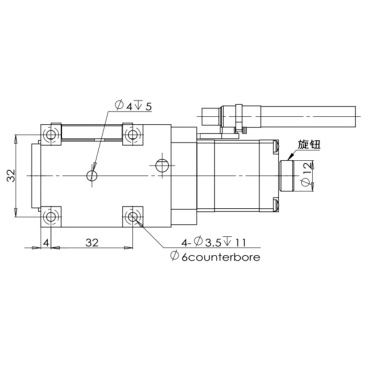

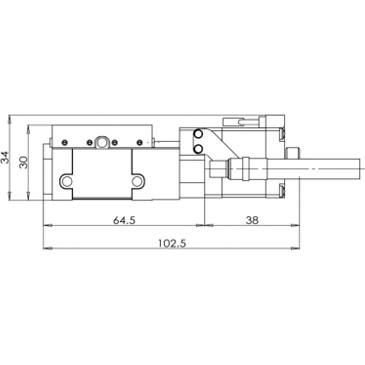

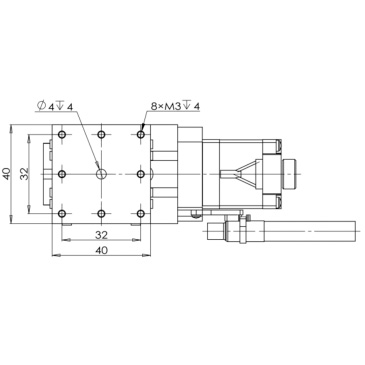

GUXC15-40 Sizes
Metrology
OEM and industrial
Model dependent travel range, load capacity, and table size

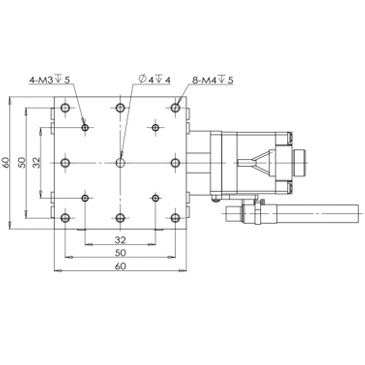

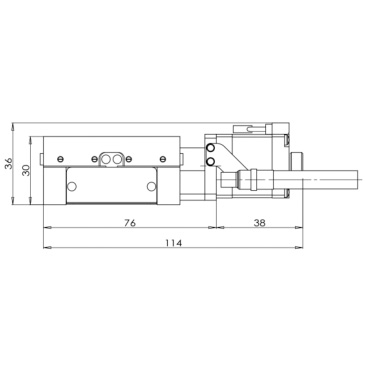

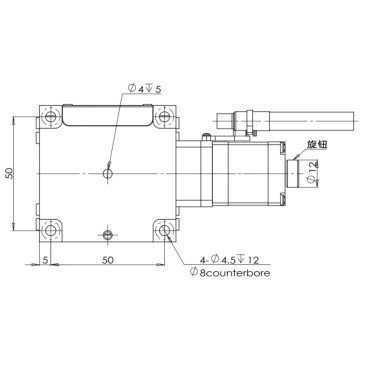

GUXC20-60 Sizes
