Manual 🦅 Stages
This High Precision Manual Multi Axis Stage is made of black anodized aluminum that offers light yet rigid construction and minimizes stray light in situation where light sensitivity is important.
Please refer to the detailed list of specifications and inquire if anything is not clear. These manual translation stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are working in an R&D or industrial setting, or looking for an OEM solution for your motion control application, and we can supply a suitable solution for your application. Our products are made in China and undergo a rigorous quality control to meet the needs of you.

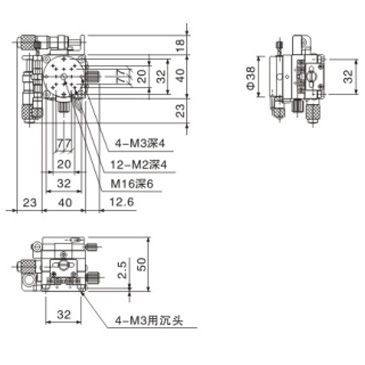

GLSP40-LM Size and Overview
- Model number: GLSP40-LM
- Table size: ф38MM
- XY Axis Travel range: ±6.5MM
- R Axis Travel range: 360° Coarse adjustment,±5° Accurate adjustment
- Resolution: 0.01MM
- Peak force: 9.8N (1Kgf)
- XY Axis number: GXY40-LM
- R Axis number: GRSP40-L
- Moving Axis: XY Axis and R Axis
- Material: Aluminum, black anodized
- Overall mass: 0.37Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

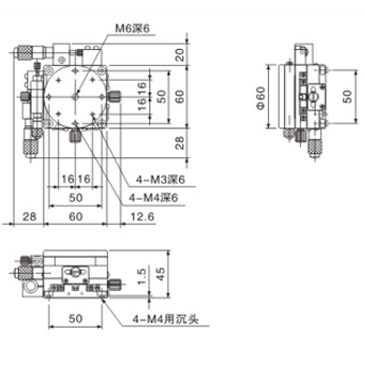

GLS60-LM Size and Overview
- Model number: GLS60-LM
- Table size: ф60MM
- XY Axis Travel range: ±6.5MM
- R Axis Travel range: 360° Coarse adjustment,±5° Accurate adjustment
- Resolution: 0.01MM
- Peak force: 29.4N (3Kgf)
- XY Axis number: GXY60-LM
- R Axis number: GRS60-L
- Moving Axis: XY Axis and R Axis
- Material: Aluminum, black anodized
- Overall mass: 0.64Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

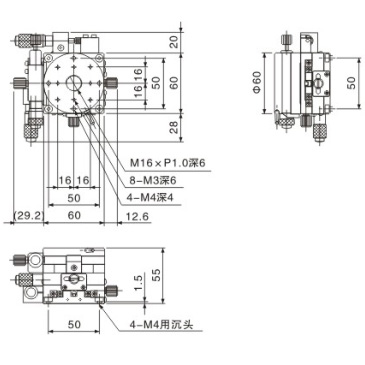

GLSP60-LM Size and Overview
- Model number: GLSP60-LM
- Table size: ф60MM
- XY Axis Travel range: ±6.5MM
- R Axis Travel range: 360° Coarse adjustment,±5° Accurate adjustment
- Resolution: 0.01MM
- Peak force: 29.4N (3Kgf)
- XY Axis number: GXY60-LM
- R Axis number: GRSP60-L
- Moving Axis: XY Axis and R Axis
- Material: Aluminum, black anodized
- Overall mass: 0.78Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

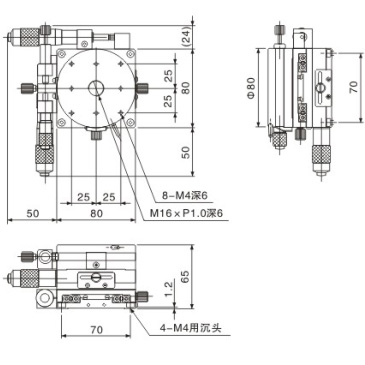

GLSP80-L Size and Overview
- Model number: GLSP80-L
- Table size: ф80MM
- XY Axis Travel range: ±12.5MM
- R Axis Travel range: 360° Coarse adjustment,±5° Accurate adjustment
- Resolution: 0.01MM
- Peak force: 39.2N (4Kgf)
- XY Axis number: GXY80-L
- R Axis number: GRSP80-L
- Moving Axis: XY Axis and R Axis
- Material: Aluminum, black anodized
- Overall mass: 1.57Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

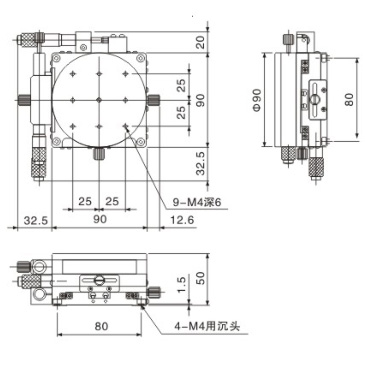

GLS90-LM Size and Overview
- Model number: GLS90-LM
- Table size: ф90MM
- XY Axis Travel range: ±12.5MM
- R Axis Travel range: 360° Coarse adjustment,±5° Accurate adjustment
- Resolution: 0.01MM
- Peak force: 29.4N (3Kgf)
- XY Axis number: GXY90-LM
- R Axis number: GRS90-L
- Moving Axis: XY Axis and R Axis
- Material: Aluminum, black anodized
- Overall mass: 1.5Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

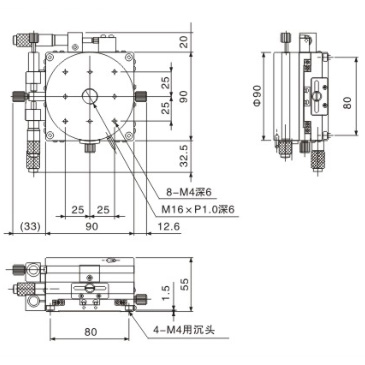

GLSP90-LM Size and Overview
- Model number: GLSP90-LM
- Table size: ф90MM
- XY Axis Travel range: ±12.5MM
- R Axis Travel range: 360° Coarse adjustment,±5° Accurate adjustment
- Resolution: 0.01MM
- Peak force: 39.2N (9Kgf)
- XY Axis number: GXY90-LM
- Z Axis number: GRSP90-L
- Moving Axis: XY Axis and R Axis
- Material: Aluminum, black anodized
- Overall mass: 1.62Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

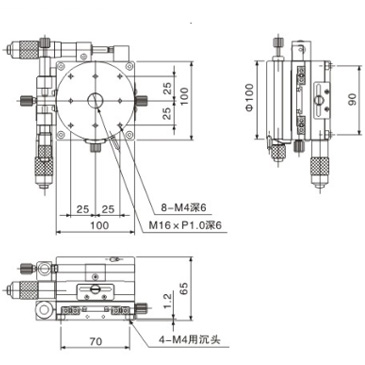

GLSP100-L Size and Overview
- Model number: GLSP100-L
- Table size: ф100MM
- XY Axis Travel range: ±12.5MM
- R Axis Travel range: 360° Coarse adjustment,±5° Accurate adjustment
- Resolution: 0.01MM
- Peak force: 39.2N (4Kgf)
- XY Axis number: GXY100-L
- R Axis number: GRSP100-L
- Moving Axis: XY Axis and R Axis
- Material: Aluminum, black anodized
- Overall mass: 2.1Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

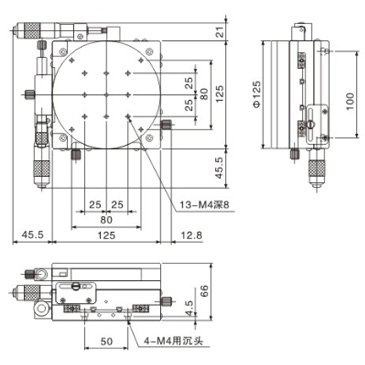

GLS125-LM Size and Overview
- Model number: GLS125-LM
- Table size: ф125MM
- XY Axis Travel range: ±12.5MM
- R Axis Travel range: 360° Coarse adjustment,±5° Accurate adjustment
- Resolution: 0.01MM
- Peak force: 29.4N (3Kgf)
- XY Axis number: GXY125-LM
- R Axis number: GRS125-L
- Moving Axis: XY Axis and R Axis
- Material: Aluminum, black anodized
- Overall mass: 2.42Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

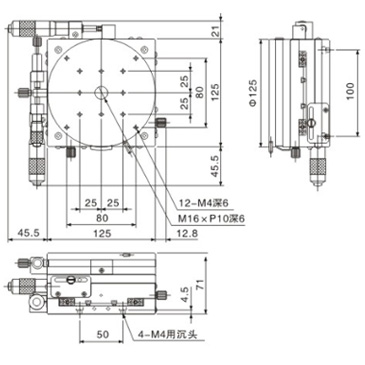

GLSP125-LM Size and Overview
- Model number: GLSP125-LM
- Table size: ф125MM
- XY Axis Travel range: ±12.5MM
- R Axis Travel range: 360° Coarse adjustment,±5° Accurate adjustment
- Resolution: 0.01MM
- Peak force: 49N (5Kgf)
- XY Axis number: GXY125-LM
- R Axis number: GRSP125-L
- Moving Axis: XY Axis and R Axis
- Material: Aluminum, black anodized
- Overall mass: 2.72Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing
