Manual Stages XZ Axis
This High Precision Manual Multi Axis Stage is made of black anodized aluminum that offers light yet rigid construction and minimizes stray light in situation where light sensitivity is important.
Please refer to the detailed list of specifications and inquire if anything is not clear. These manual translation stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are working in an R&D or industrial setting, or looking for an OEM solution for your motion control application, and we can supply a suitable solution for your application. Our products are made in China and undergo a rigorous quality control to meet the needs of you.

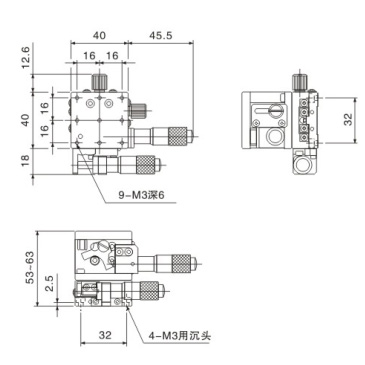

GLE40-L Size and Overview
- Model number: GLE40-L
- Table size: 40×40MM
- X Axis Travel range: ±6.5MM
- Z Axis Travel range: 10MM
- Resolution: 0.01MM
- Peak force: 19.2N (2Kgf)
- X Axis number: GX40-L
- Z Axis number: GLZ40
- Moving Axis: X Axis and Z Axis
- Material: Aluminum, black anodized
- Overall mass: 0.31Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

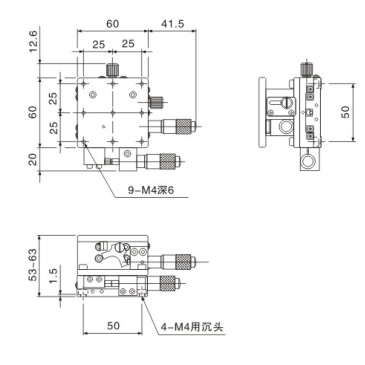

GLE60-L Size and Overview
- Model number: GLE60-L
- Table size: 60×60MM
- X Axis Travel range: ±6.5MM
- Z Axis Travel range: 10MM
- Resolution: 0.01MM
- Peak force: 29.4N (3Kgf)
- X Axis number: GX60-L
- Z Axis number: GLZ60
- Moving Axis: X Axis and Z Axis
- Material: Aluminum, black anodized
- Overall mass: 0.51Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

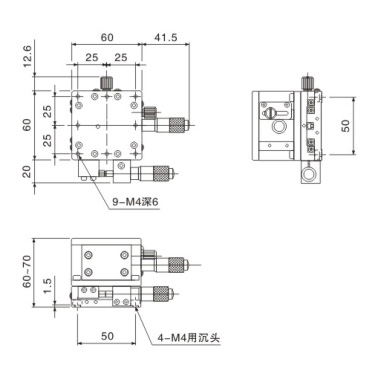

GLE60-L-2 Size and Overview
- Model number: GLE60-L-2
- Table size: 60×60MM
- X Axis Travel range: ±6.5MM
- Z Axis Travel range: 10MM
- Resolution: 0.01MM
- Peak force: 58.8N (6Kgf)
- X Axis number: GX60-L
- Z Axis number: GLZ60-2
- Moving Axis: X Axis and Z Axis
- Material: Aluminum, black anodized
- Overall mass: 0.63Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

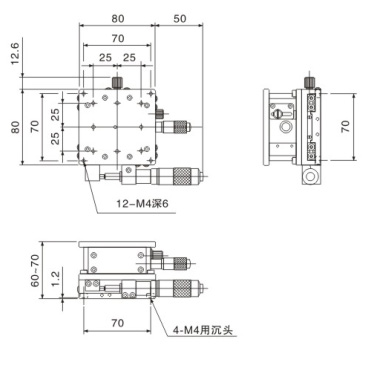

GLE80-L-2 Size and Overview
- Model number: GLE80-L-2
- Table size: 80×80MM
- X Axis Travel range: ±12.5MM
- Z Axis Travel range: 10MM
- Resolution: 0.01MM
- Peak force: 88.2N (9Kgf)
- X Axis number: GX80-L
- Z Axis number: GLZ80-2
- Moving Axis: X Axis and Z Axis
- Material: Aluminum, black anodized
- Overall mass: 1.02Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

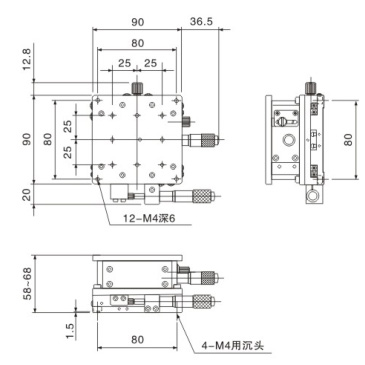

GLE90-L-2 Size and Overview
- Model number: GLE90-L-2
- Table size: 90×90MM
- X Axis Travel range: ±12.5MM
- Z Axis Travel range: 10MM
- Resolution: 0.01MM
- Peak force: 88.2N (9Kgf)
- X Axis number: GX90-L
- Z Axis number: GLZ90-2
- Moving Axis: X Axis and Z Axis
- Material: Aluminum, black anodized
- Overall mass: 1.18Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

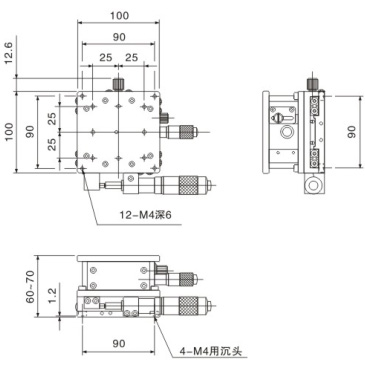

GLE100-L-2 Size and Overview
- Model number: GLE100-L-2
- Table size: 100×100MM
- X Axis Travel range: ±12.5MM
- Z Axis Travel range: 10MM
- Resolution: 0.01MM
- Peak force: 88.2N (9Kgf)
- X Axis number: GX100-L
- Z Axis number: GLZ100-2
- Moving Axis: X Axis and Z Axis
- Material: Aluminum, black anodized
- Overall mass: 1.4Kg
Features:
1. No MOQ limited
2. Short lead-time
3. Quickly response
4. Focus on Better Sales Service
5. Customized available
6. Standard Export Packing

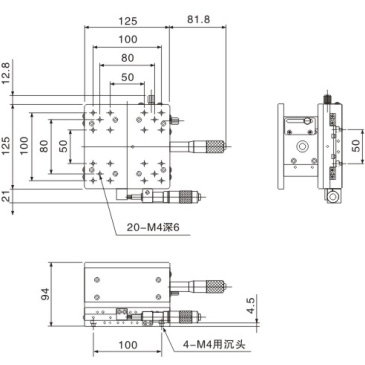

GLE125-L-2 Size and Overview
- Model number: GLE125-L-2
- Table size: 125×125MM
- X Axis Travel range: ±12.5MM
- Z Axis Travel range: 20MM
- Resolution: 0.01MM
- Peak force: 147N (15Kgf)
- X Axis number: GX125-L
- Z Axis number: GLZ125-2
- Moving Axis: X Axis and Z Axis
- Material: Aluminum, black anodized
- Overall mass: 3.38Kg
